AC Infinity CLOUDFORGE T5 – smart humidifier with UV-C, warm and cold mist

The AC Infinity CLOUDFORGE T5 is a smart 9-litre humidifier for grow tents and controlled growing environments, enabling particularly precise humidity control. With warm and cold mist, VPD control, UV-C sterilisation and 10-level adjustable mist output, it offers significantly more options than a conventional ultrasonic humidifier.

At its heart is a modern EC ultrasonic atomiser, which allows for fine-tuning of humidity output. The mist output and heating can each be adjusted independently across 10 levels. This enables you to tailor the humidification precisely to the temperature, growth stage and climatic conditions in your grow room.

With a 9-litre water tank, a maximum output of 800 ml/h and up to 80 hours’ running time, the CLOUDFORGE T5 is also suitable for larger grow set-ups and longer operating times.

Warm and cool mist for every season

A special feature of the CLOUDFORGE T5 is the combination of warm and cool mist.

Cool mist is suitable for standard humidification at normal or warmer ambient temperatures. In cooler grow rooms, however, evaporation and humidity distribution can be less efficient.

This is where the warm mist mode comes into play: according to the manufacturer, warm mist can be up to three times more efficient in cold environments. This allows the desired humidity to be maintained with lower water consumption.

As the mist output and heating output can be adjusted independently of one another across 10 levels each, you can combine both parameters individually.

Precise control based on humidity and VPD

The integrated Smart Controller not only enables standard control based on relative humidity. The CLOUDFORGE T5 also supports VPD-based control.

VPD – the vapour pressure deficit – simply put, describes the relationship between temperature and humidity and is therefore an important parameter for your plants’ transpiration.

Using appropriate humidity and VPD triggers, the humidifier can react automatically when the set climate values are reached or fallen below.

This means you do not have to constantly adjust the mist output manually and can adapt the humidity much more precisely to your plants and their stage of development.

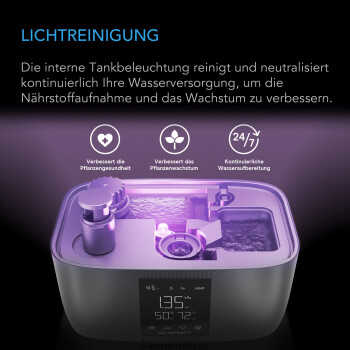

UV-C sterilisation for clean water

Another highlight is the integrated UV-C sterilisation. The system treats the water in the tank before it is atomised.

UV-C technology helps to keep the water supply more hygienic and reduce unwanted microorganisms. This is a particularly useful additional feature of the system, especially for a humidifier where water can remain in the tank for many hours.

In addition, the CLOUDFORGE T5 features an opaque water tank. This prevents direct light from reaching the stored water, thereby inhibiting light-dependent algae growth.

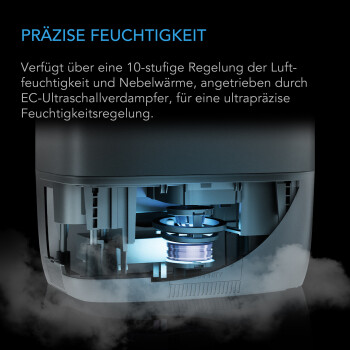

Next-gen EC ultrasonic nebuliser with 10 power settings

AC Infinity uses a next-generation EC ultrasonic nebuliser to generate the mist.

The mist output can be finely adjusted across 10 power settings. This allows you to use the T5 both for low, continuous humidification and for situations where larger amounts of moisture are required quickly.

At maximum power, the humidifier achieves an output rate of up to 800 ml per hour.

The heating function also has 10 settings. Mist and heating output can be adjusted independently of one another, allowing for numerous combinations to suit different climatic conditions.

9-litre tank with up to 80 hours’ running time

With its 9-litre water tank, the CLOUDFORGE T5 is designed for extended running times.

Depending on the mist and heating settings selected, the unit can run for a maximum of up to 80 hours. This means you don’t have to keep refilling the tank when using moderate humidification.

An automatic safety shut-off monitors the water level. If the tank is empty, the humidifier switches off automatically.

Flexible hose for targeted mist distribution

The CLOUDFORGE T5 was developed specifically for grow environments. The scope of delivery therefore includes a flexible hose system, which allows the mist produced to be directed precisely to specific areas.

This is useful, for example, if the humidifier is to be placed outside the grow box or if the humidity needs to be distributed specifically within a particular area.

Waterproof ports and a seal designed for humid environments complement the grow-oriented design.

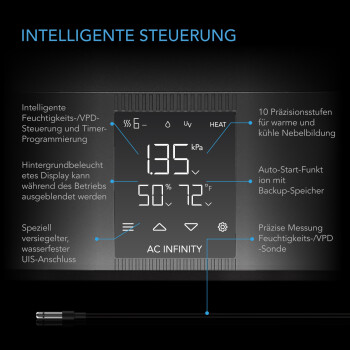

Smart functions for automated grow set-ups

In addition to automatic humidity and VPD control, the AC Infinity CLOUDFORGE T5 features further functions for the most autonomous operation possible:

• programmable timer
• humidity trigger
• VPD triggers
• 10 mist levels
• 10 heating levels
• Auto-start
• Backup memory for settings
• Automatic shut-off when the tank is empty
• Display lighting that can be switched off

The power/backup memory function restores the saved settings following a power cut.

The switchable background display is particularly useful in a grow tent. This prevents the display lighting from emitting unnecessary light during the dark phase.

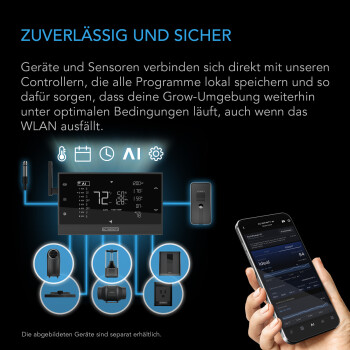

UIS™-compatible for even greater climate control

The CLOUDFORGE T5 is part of the AC Infinity UIS™ platform and can be connected to compatible UIS controllers.

This allows the humidifier to be integrated into an automated climate control system alongside other compatible AC Infinity devices. Depending on the controller used, additional climate triggers, timetables and grow cycles are available.

When paired with a Wi-Fi-enabled UIS controller, the system can also be monitored and configured via the AC Infinity app.

This allows, for example, humidification, exhaust air, recirculation and other climate control components to be coordinated within a single system.

Advantages of the AC Infinity CLOUDFORGE T5

• Smart humidifier specifically designed for grow environments
• Large 9-litre water tank
• Warm and cold mist
• UV-C sterilisation of the water supply
• Automatic control based on humidity
• VPD-based automation
• Next-gen EC ultrasonic atomiser
• 10 adjustable mist levels
• 10 independently adjustable heating levels
• Up to 800 ml/h mist output
• Up to 80 hours’ runtime
• Flexible hose system for targeted mist distribution
• Light-proof water tank
• Automatic shut-off when the tank is empty
• Display lighting can be switched off for the dark phase
• Auto-start and backup memory
• UIS™-compatible
• Advanced control options via compatible AC Infinity controllers

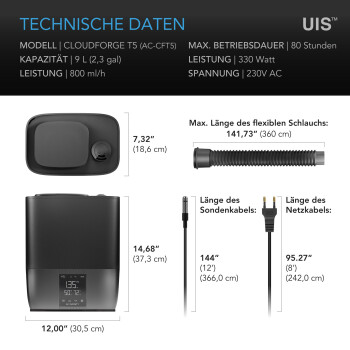

Technical specifications

• Unit type: Smart warm/cold mist humidifier
• Tank capacity: 9 L
• Maximum running time: up to 80 hours
• Maximum output rate: 800 ml/h
• Mist levels: 10
• Heating levels: 10
• Control: Humidity & VPD
• Sterilisation: UV-C
• Noise level: 46 dBA
• Power consumption: max. 330 W
• Current consumption: 1.43 A at 230 V
• Voltage: 230 V AC
• Mains plug: EU plug
• Operating humidity: 35–95 % rF
• L 18.6 cm x W 30.5 cm x H 37.3 cm
• Smart System AC Infinity UIS™
