AC Infinity IONBEAM S16 – Flexible supplementary lighting for maximum light coverage

The AC Infinity IONBEAM S16 is a versatile LED strip set with four 40.7 cm full spectrum strips, specially designed to optimally illuminate hard-to-reach areas in your grow tent. Whether as supplementary, gap or even primary lighting, this system ensures even light distribution and supports healthy plant growth at every stage.

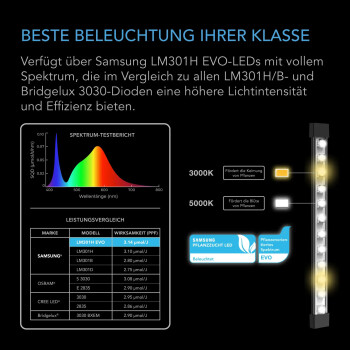

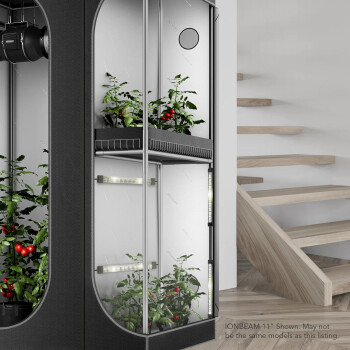

Equipped with high-quality Samsung LM301H EVO LEDs (3000K & 5000K), the IONBEAM S16 delivers a balanced full spectrum for growth and flowering. The strips can be magnetically attached to vertical tent poles or flexibly mounted between the poles using the steel rods supplied – ideal for interlighting and underlighting.

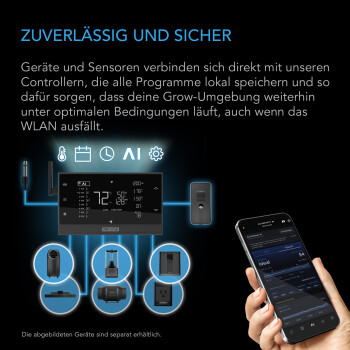

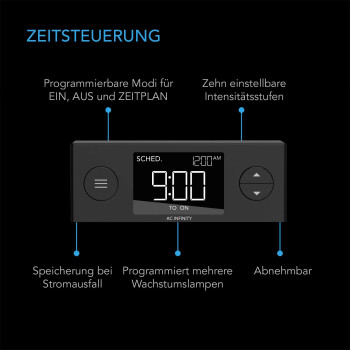

The integrated digital controller offers 10 brightness levels and a schedule mode that allows you to simulate natural day cycles. As part of the UIS™ platform, the system can also be connected to other AC Infinity devices and controlled via an app – for smart automation and full control over your grow setup.

Advantages at a glance

• 4× 40.7 cm full spectrum LED strips
• Ideal as supplementary, inter- or under-lighting
• Samsung LM301H EVO LEDs (3000K & 5000K)
• Magnetic & flexible mounting in the grow tent
• Digital controller with 10 dimming levels & timer
• IP65-protected against dust & water
• UIS™-compatible for app & system control

Light & mounting

The LED strips offer extended light coverage for areas that are not sufficiently reached by the main grow lamp. Thanks to the modular design, you can connect additional strips to further optimise the illumination. The robust aluminium housing also serves as a passive heat sink, which increases the service life of the LEDs.

Note: Original extension cables from AC Infinity are currently unavailable. Alternatively, standard DC extension cables (2.1 mm / 5.5 mm plug to socket) can be used.

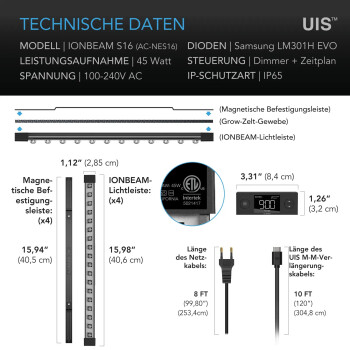

Technical data

Dimensions

• LED strip: 40.6 × 2.85 cm
• Controller: 8.4 × 3.2 cm
• Cable length: 2.53 m
• Connection cable: 23.2 cm

Power & electrical

• Power consumption: 42 W
• Voltage: 100–240 V AC (EU plug)
• Frequency: 50/60 Hz
• Current consumption: 0.18 A (at 230 V)

LED & light

• Diodes: Samsung LM301H EVO
• LEDs per strip: 18
• Spectrum: 3000K & 5000K full spectrum
• Service life: approx. 50,000 hours

Environment

• Protection class: IP65
• Operating humidity: 35–85% RH
• Operating temperature: 0–60 °C
