AC Infinity IONFRAME EVO3 LED – Intelligent light spectrum for maximum yields

The IONFRAME EVO3 from AC Infinity is a state-of-the-art LED grow lamp designed for discerning indoor gardeners who value efficiency, quality and smart control. With 280 watts of power, a broad light spectrum and intelligent control technology, it offers ideal conditions for all phases of plant growth – from germination to flowering.

High-quality lighting technology

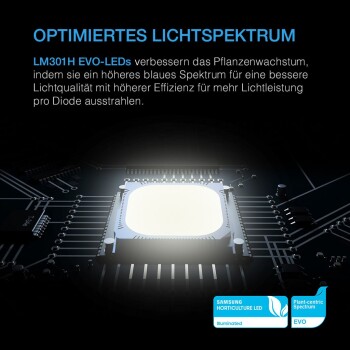

At the heart of the EVO3 are Samsung LM301H EVO LEDs, which are currently among the most efficient and powerful on the market. They deliver an exceptionally high light output of up to 3.14 µmol/J, which means more photosynthesis with less energy consumption. The light spectrum is supplemented by additional diodes for:

• Warm white (3000K) and cool white (5000K) light for balanced growth and flowering phases,
• deep red light (660 nm) to promote flower formation,
• infrared (730 nm) to influence elongation growth,
• UV light (395 nm) to increase secondary plant substances such as terpenes or flavonoids.

This precise combination optimally imitates natural sunlight – for healthy, vigorous plant growth and maximum harvest quality.

Intelligent control & automation

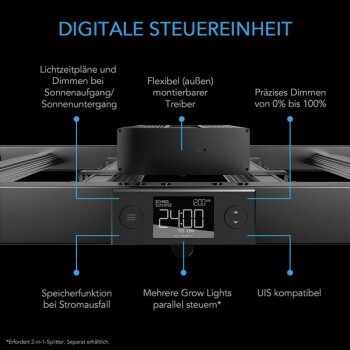

The IONFRAME EVO3 has an integrated digital control unit with numerous smart functions:

• Dimmer with 10 brightness levels,
• sunrise and sunset simulation for a natural daily rhythm,
• timer and schedule function for automated light cycles,

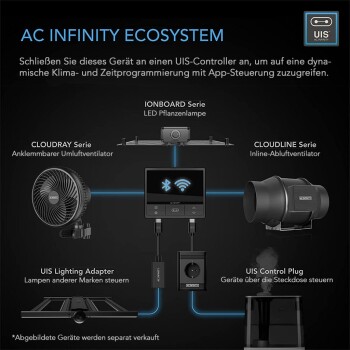

• Wi-Fi compatibility in conjunction with an optional UIS™ controller to operate the lamp via app or voice control.

This intelligent control allows precise adjustment to each growth phase and helps to use energy efficiently.

Cool, quiet and durable

Instead of noisy active cooling, AC Infinity has opted for a passively cooled design with solid aluminium heat sinks for the EVO3. This ensures virtually silent operation while extending the service life of the components to up to 50,000 operating hours. The external driver can be positioned separately to keep heat away from the grow tent and ensure a consistent ambient temperature.

Robust construction for continuous use

The IONFRAME EVO3 is not only powerful, but also particularly robust:

• Waterproof to protection class IP65, ideal for humid or dusty growing environments,
• Can be linked with other lights – ideal for modular setups or larger areas,
• Compact dimensions: the lamp measures approx. 83 × 41 × 7.7 cm – perfect for grow tents up to 120 × 60 cm
• Easy to install with suspension and plug-and-play connection.

Advantages at a glance

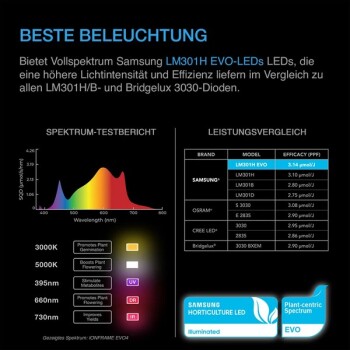

• Equipped with Samsung LM301H EVO LEDs with an efficiency of 3.14 µmol/J PPE each, the highest efficiency of the LM301B, LM301H and Bridgelux 3030 chips.
• Programmed with schedule control, dimming at sunrise and sunset, and 10 brightness levels; UIS™ platform compatible for control via WiFi app.

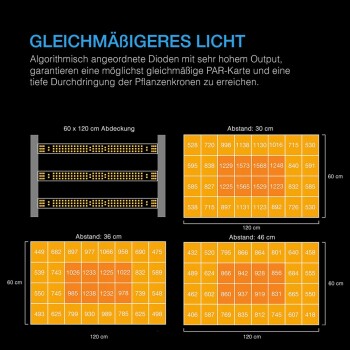

• Rod-shaped form factor with algorithmically arranged diodes optimised for even coverage, deep canopy penetration and hotspot reduction.
• The passively cooled LED driver is removable to compensate for heat dissipation; also supports daisy chaining of up to 80 grow lights.
• Includes adjustable heavy-duty rope hangers (x2)
• Coverage up to 120 x 60 cm | Samsung LM301H EVO chips | 840 diodes | 280 W | ETL Cert. 5021417

Technical details at a glance

• LED dimensions: 41.0 x 83.0 x 7.7 cm
• Driver dimensions (power supply): 18.2 x 4.0 cm
• Light coverage: up to 120 x 60 cm
• Diodes: Samsung LM301H EVO
• Total number of LEDs: 840
• Number of LEDs (EVO 3000K): 537
• Number of LEDs (EVO 5000K): 270
• Number of LEDs (Seoul 395 nm): 3
• Number of LEDs (OSRAM 660 nm): 27
• Number of LEDs (OSRAM 730 nm): 3
• Power supply (driver): SOSEN-320W
• Efficiency: 3.14 µmol/j
• Spectrum: 395 nm, 660 nm, 730 nm, 3000 K, 5000 K
• Power: 280 W
• Electrical voltage: 100–277 V (50/60 Hz)
• Current: 1.22 A (at 230 V)
• Power plug: Euro plug
• Humidity range: 35 to 85% RH
• Temperature range: 0 - 60 °C
• Protection class: IP65
• Life expectancy: 50,000 hours
• Certifications: CE, RoHS, ETL
