AC Infinity IONFRAME EVO4 – 300 W LED grow lamp with Samsung LM301H EVO & smart control

Do you want strong plants, compact internodes and lush flowers – and all with maximum efficiency? Then the AC Infinity IONFRAME EVO4 is just the right LED grow lamp for you. It combines state-of-the-art lighting technology, clever control and sophisticated design – ideal for grow tents up to 100 x 100 cm.

High-quality lighting technology

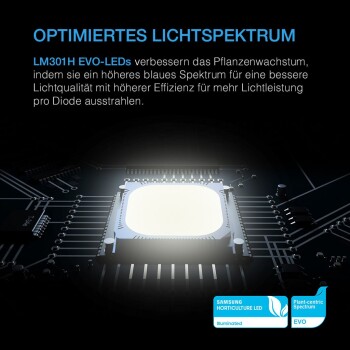

The EVO4 is equipped with 896 high-performance LEDs – including the latest Samsung LM301H EVO diodes, which are known for their extremely high light output. With an efficiency of 3.14 µmol/J, you generate more usable light with less power consumption – ideal if you value quality and energy savings.

In addition, OSRAM Deep Red (660 nm), Far Red (730 nm) and UV diodes (395 nm) provide a particularly broad spectrum that optimally nourishes your plants in every phase – from germination to growth to flowering.

• Warm white (3000K) and cool white (5000K) light for balanced growth and flowering phases,
• deep red light (660 nm) to promote flower formation,
• infrared (730 nm) to influence elongation growth,
• UV light (395 nm) to increase secondary plant substances such as terpenes or flavonoids.

This precise combination optimally imitates natural sunlight – for healthy, vigorous plant growth and maximum harvest quality.

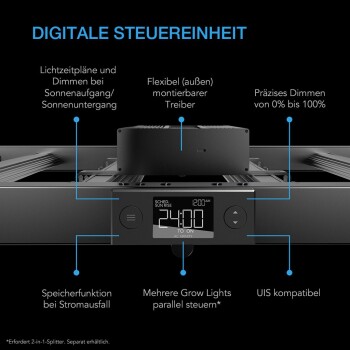

Intelligent control & automation

You can control the IONFRAME EVO4 either directly via the optional AC Infinity Controller 69 PRO or conveniently via smartphone app over Wi-Fi or Bluetooth.

The following functions are available:

• Dimming function in 10 steps (0–100%)
• Timer with automatic daily cycle
• Sunrise and sunset function

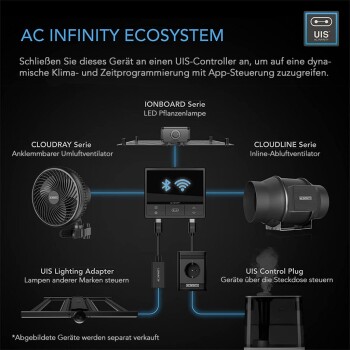

• Networking with ventilation, air conditioning and other AC Infinity devices

This intelligent control system allows you to design your indoor grow system more efficiently and precisely – saving time and optimising the microclimate.

Cool, quiet and durable

The EVO4's driver (power supply) is removable – you can mount it outside your tent, for example, to reduce the heat in the growing area. The high-quality aluminium housing also functions as a passive heat sink, which operates silently and dissipates heat efficiently.

Despite its high performance, the lamp remains pleasantly quiet and does not overheat – ideal for discreet home grows.

Robust construction for continuous use

The IONFRAME EVO4 is not only powerful, but also particularly robust:

• Waterproof to protection class IP65, ideal for humid or dusty growing environments,
• Can be connected to other lights – ideal for modular setups or larger areas,
• Compact dimensions: the lamp measures approx. 52 × 58 × 7.6 cm – perfect for grow tents up to 100 × 100 cm
• Easy installation with suspension and plug-and-play connection.

Advantages at a glance

• Equipped with Samsung LM301H EVO LEDs with an efficiency of 3.14 µmol/J PPE each, the highest efficiency of the LM301B, LM301H and Bridgelux 3030 chips.
• Programmed with schedule control, dimming at sunrise and sunset, and 10 brightness levels; UIS™ platform compatible for control via WiFi app.

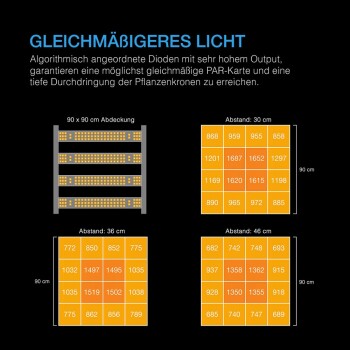

• Rod-shaped form factor with algorithmically arranged diodes optimised for even coverage, deep penetration of the plant canopy and reduction of hot spots.
• The passively cooled LED driver is removable to compensate for heat dissipation; also supports daisy chaining with up to 80 grow lights.
• Includes adjustable heavy-duty rope hangers (x2)
• Coverage up to 100 x 100 cm (optimal: 90 x 90 cm) | Samsung LM301H EVO chips | 896 diodes | 300 W | ETL Cert. 5021417

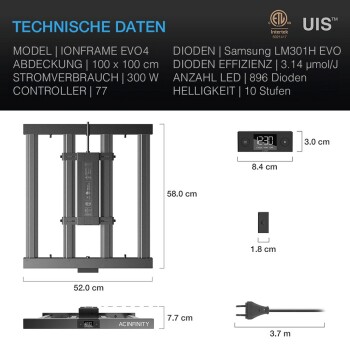

Technical details at a glance

• LED dimensions: 52.0 x 58.0 x 7.6 cm
• Driver dimensions (power supply): 18.2 x 4.0 cm
• Light coverage: up to 100 x 100 cm, optimal 90 x 90 cm
• Diodes: Samsung LM301H EVO
• Total number of LEDs: 896
• Number of LEDs (EVO 3000K): 500
• Number of LEDs (EVO 5000K): 360
• Number of LEDs (Seoul 395 nm): 4
• Number of LEDs (OSRAM 660 nm): 28
• Number of LEDs (OSRAM 730 nm): 4
• Power supply (driver): SOSEN-320W
• Efficiency: 3.14 µmol/j
• Spectrum: 395 nm, 660 nm, 730 nm, 3000 K, 5000 K
• Power: 300 W
• Electrical voltage: 100–277 V (50/60 Hz)
• Current: 1.31 A (at 230 V)
• Power plug: Euro plug
• Humidity range: 35 to 85% RH
• Temperature range: 0 - 60 °C
• Protection class: IP65
• Life expectancy: 50,000 hours
• Certifications: CE, RoHS, ETL
