Extraction Kit PrimaKlima PKVS-100EC-THC with Temp & Hygro Control, 580 m³/h, ø100 mm

This powerful PrimaKlima PKVS-100EC-THC Set, featuring perfectly matched components, is ideally suited for grow areas ranging from 100x100 cm up to a maximum of 120x120 cm.

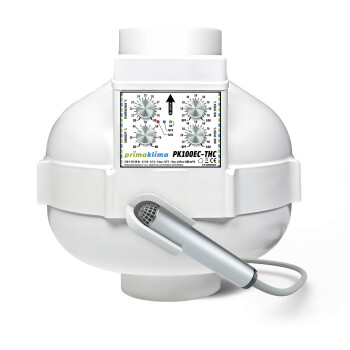

With the PK100EC-THC duct fan, PrimaKlima has launched a standout product on the market that impresses with its exceptionally high-quality construction, energy efficiency, and very quiet operation. The duct fan features integrated humidity, temperature, and speed control—a feature that is not only practical but also eliminates the need to purchase an optional speed controller.

The built-in EC motor from ebmpapst (Made in Germany) stands out for its low power consumption, high pressure build-up, performance, and exceptionally quiet operation. The integrated speed controller allows for stepless adjustment of the operating speed, all without any annoying humming noises.

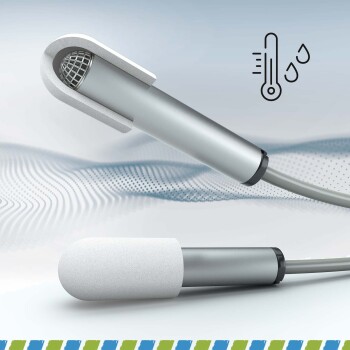

The temperature is continuously adjustable from 20–30°C, and the motor speed (min. + max.) from 0–100%. The temperature sensor is approx. 2 m long

Technical Specifications PK100EC-THC 580 m³/h:

• Flange: 100 mm
• Airflow: 580 m³/h
• Power: 0–115 W
• Voltage: 230 V, 50/60 Hz
• Current consumption: 0.5 A
• Tmax: 50 °C
• Dimensions: 244 × 241 mm
• Weight: 2.4 kg

The Prima Klima Eco 360 m³/h ø100mm activated carbon filter ensures effective odor removal at an unbeatable price-performance ratio. Powerful air filtration with a 3 cm thick layer of CTC80-3mm activated carbon. This activated carbon filter from the Eco series reliably filters out all types of unwanted odors from the exhaust air and is one of the most important components in indoor cultivation.

Filter Specifications:

• Weight: 2.2 kg
• Height: 250 mm without flange
• Diameter: 180 mm
• Connection diameter: Ø100 mm
• Maximum airflow: 360 m³/h
• Optimal airflow: 240 m³/h
• Activated carbon: CTC80-3mm 1.2 kg

The set consists of the following items:

• 1 x PrimaKlima Activated Carbon Filter Eco 360 m³/h ø100 mm
• 1 x PrimaKlima PK100EC-THC Duct Fan 580 m³/h Climate Controller
• 1 x Combi-Flex Duct ø102 mm, 3 meters in one piece
• 1 x Mounting Collar ø100 mm
• 1 x Hose clamp ø60 to 165 mm

Note:

The set is delivered unassembled. Connect the duct fan and the activated carbon filter using the mounting sleeve; please use the hose clamp for the ventilation hose.

PLEASE NOTE: The maximum speed of the fan should not exceed the maximum capacity of the filter.
