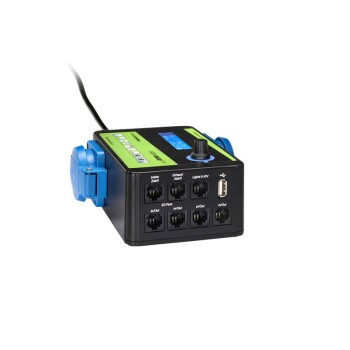

GrowBase Lite – Compact climate control for efficient indoor growing

The GrowBase Lite is the ideal solution for indoor gardeners who want to control their climate reliably without unnecessary complexity. Despite its compact design, it offers powerful control of temperature, humidity, CO₂ and negative pressure, creating stable conditions for healthy plants and uniform growth.

With two freely configurable sockets and additional control and sensor outputs, you can flexibly integrate numerous devices. The GrowBase Lite is suitable for both EC and AC fans and also supports 0–10V / 1–10V dimmable lights, including a sunrise and sunset function. You can conveniently set all parameters via the clear menu – separately for the day and night phases.

The controller keeps the temperature and humidity at a constant desired level and ensures that odours remain reliably in the grow room thanks to negative pressure control. Developed and manufactured in Germany, the GrowBase Lite impresses with its reliability, precision and ease of use.

Advantages at a glance

• Compact climate controller for indoor grows
• Control of temperature, humidity & CO₂
• Negative pressure control against odours
• Suitable for EC and AC fans
• 2 freely assignable sockets + DC output
• Light dimming (0–10V / 1–10V) with sunrise & sunset
• Extensive timer functions
• Made in Germany

Functions & connection options

• Temperature and humidity control
• CO₂ control
• Negative pressure control
• Daily, interval & event timers
• USB interface for updates
• DC output (MOSFET) for relays & contactors
• RJ45 connections for:
  • EC supply air & exhaust air fans
  • 0–10V / 1–10V LED lights
  • Temperature & humidity sensor (incl.)
  • CO₂ sensor
  • Negative pressure sensor
  • Temperature sensor for heating mats

Compatible devices

• AC supply air & exhaust air fans
• LED lights
• Humidifiers & dehumidifiers
• Recirculation fans
• Irrigation pumps
• Heating mats
• CO₂ valves & CO₂ generators

Technical data

• Dimensions (L×W×H, without cable): 190 × 170 × 120 mm
• Sensor cable length (T/RH): approx. 5 m
• Power cable length: approx. 2 m
• Power supply: 100–240 V ~ 7 A | 50–60 Hz

Outputs & power ratings

• Multifunctional Out 1 & 2 (each):
  • 600 VA (W) @ 230 V
  • 310 VA (W) @ 120 V
  • 2.6 A
• Multifunctional Out 1 + 2 (total):
  • 1200 VA (W) @ 230 V
  • 620 VA (W) @ 120 V
  • 5.2 A
• Multifunctional Out 3 (DC): 12–24 V DC | max. 1 A
• 0–10V outputs: max. 20 mA

Sensors & environment

• Repeatability: ±0.1% RH / ±0.2 °C
• Absolute sensor accuracy: ±2% RH / ±0.2 °C
• Protection class / protection rating: IP42 / protected insulation
• Permissible ambient temperature: 10–40 °C

Scope of delivery

• GrowBase Lite controller
• Temperature & humidity sensor
• Three-hole disc for sensor mounting
• 1× power cable
• Quick start guide
• Screws, dowels & drilling template
