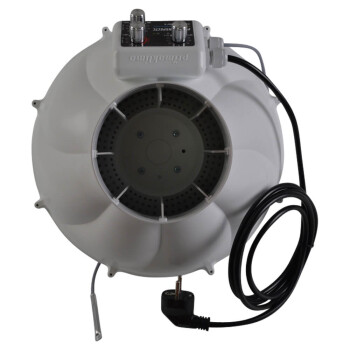

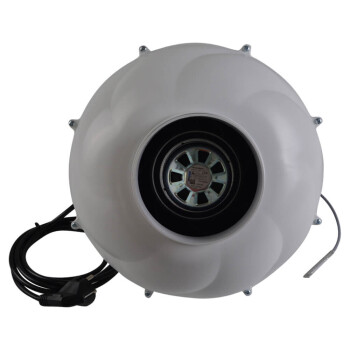

Prima Klima Whisperblower Extractor Fan EC-TC Temperature Control 800m³/h - 1400m³/h

Prima Klima has developed a completely new design duct fan in cooperation with ebm-papst Motoren. They have reconsidered the airflow principle and achieved incomparably better measurement results. This professional fan built to their proven rugged quality standard achieves an unmatched efficiency. The new design optimises the airflow in a way that can be compared to riding a roller coaster - creating more pressure with the same energy consumption as for conventional models and even producing less noise.

All components of the Prima Klima Whisperblower are manufactured in the EU.

Notice:
The air flow direction is shown with an arrow on the housing.

Features:

• Inline duct fan with ebm-papst EC-Motor
• Powerful, Quiet, Energy-Saving
• Premium ebm-papst motor
• Aerodynamically optimized shape
• Impact resistant and durable housing made from flame proof polyamide (nylon)

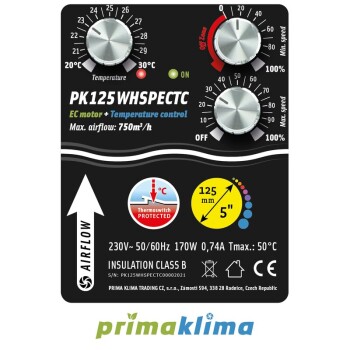

• Connection and control system integrated into housing

Technical data PK125WHSP-ECTC:

• Connection diameter: 125mm
• Max. Airflow: 800 m³/h
• Nominal power: 170 W
• Nominal current: 0.74 A
• Motor technology: EC motor
• AC input: 230 V, 50/60 Hz
• Max. Working temperature: 50°C
• Lifetime: approx. 80,000 hours
• Dimensions: 315 x 309 mm (WxH)

Technical data PK150/160WHSP-ECTC:

• Connection diameter: 150/160mm
• Max. Airflow: 1400 m³/h
• Nominal power: 170 W
• Nominal current: 1.4 A
• Motor technology: EC motor
• AC input: 230 V, 50/60 Hz
• Max. Working temperature: 50°C
• Lifetime: approx. 80,000 hours
• Dimensions: 334 x 367 mm (WxH)

Available in:

• Prima Klima Whisperblower Extractor Fan EC-TC Temperature Control 800m³/h ø125mm
• Prima Klima Whisperblower Extractor Fan EC-TC Temperature Control 1400m³/h ø150/160mm
