AC Infinity CLOUDLINE A8 200 mm duct fan with speed controller – Quiet EC inline fan for grow tents & ventilation systems

Powerful and quiet ventilation for your indoor grow

The AC Infinity CLOUDLINE A8 is a high-quality 200 mm EC duct fan, specially developed for the efficient ventilation of grow tents, grow rooms and other ventilation systems. With an airflow of up to 1,230 m³/h, an energy-efficient EC motor and exceptionally quiet operation, it reliably removes heat and humidity whilst supplying fresh air.

Equipped with a 10-step speed controller, the airflow can be optimally adjusted to the requirements of your grow environment at any time. At the same time, the fan is fully compatible with the smart controllers from the AC Infinity CLOUDLINE series and can be upgraded to a smart climate control system at any time.

Efficient airflow for optimal climate conditions

The CLOUDLINE A8 utilises a powerful mixed-flow design that combines the advantages of axial and radial fans. As a result, the fan generates high static pressure and ensures a constant airflow even over long duct runs or through activated carbon filters.

With an airflow rate of 1,230 m³/h, the fan is ideal for medium to large grow tents as well as professional exhaust systems.

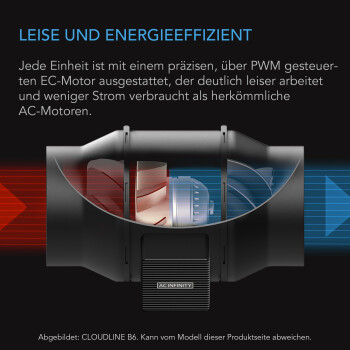

Particularly quiet EC motor with PWM control

At its heart is a modern EC motor, which is controlled via pulse width modulation (PWM). This ensures the fan runs particularly quietly and smoothly even at low speeds – without any disruptive motor noise or loss of performance.

With a noise level of just 42 dBA, the CLOUDLINE A8 operates pleasantly quietly and is ideal for noise-sensitive environments.

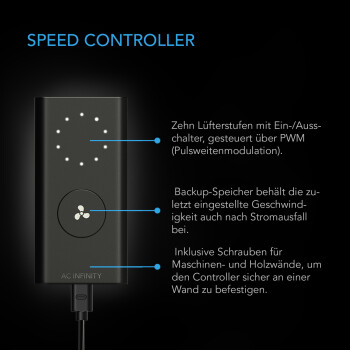

10-speed controller included

The package includes a compact 10-speed controller, allowing you to adjust the fan’s performance flexibly.

The controller offers:

• 10 speed settings
• On/off switch
• Memory function for the last selected setting
• Optimal adjustment of airflow and noise level

This allows you to tailor the climate precisely to your plants’ needs at any time.

Compatible with AC Infinity Smart Controllers

The CLOUDLINE A8 is part of AC Infinity’s UIS™ platform and can be expanded with smart controllers at any time.

Compatible with:

• Controller 69
• Controller 67
• T-Series temperature & humidity controllers
• B-Series temperature controllers

This allows you to automate temperature, humidity and timing programmes and control multiple compatible devices together.

Low-maintenance design

For easy cleaning, the entire motor housing, including the rotor, can be removed from the fan housing. This allows dust and deposits to be removed quickly without having to dismantle the entire ventilation system.

Durable and reliable

The fan features high-quality double ball bearings, which are designed for a service life of up to 67,000 hours.

In addition, the following features ensure:

• vibration-damping mounting base
• robust housing construction
• IP44 protection rating

reliable continuous operation – even under demanding conditions.

Versatile applications

The AC Infinity CLOUDLINE A8 is not only suitable for grow tents and grow rooms, but also for numerous other ventilation applications.

Ideal for:

• Grow tents
• Grow rooms
• Greenhouses
• Plant rooms
• Server cabinets
• AV racks
• Attics
• Bathrooms
• Cellars
• Exhaust and supply air systems

Advantages of the AC Infinity CLOUDLINE A8

• Powerful 200 mm EC tubular fan
• Airflow rate of up to 1,230 m³/h
• Noise level of just 42 dBA
• Energy-efficient EC motor with PWM control
• High static pressure thanks to mixed-flow technology
• Includes a 10-step speed controller
• Memory function for the last selected setting
• Compatible with AC Infinity Smart Controllers
• Removable motor housing for easy cleaning
• Robust double ball bearings with a service life of up to 67,000 hours
• IP44-certified
• Can be mounted horizontally or vertically

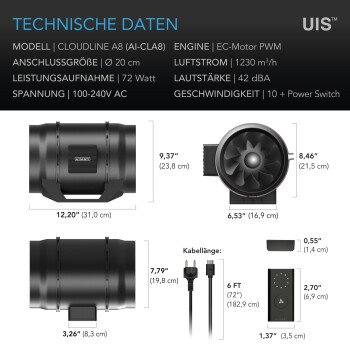

Technical data

• Connection diameter: 200 mm
• Airflow: 1,230 m³/h
• Static pressure: 746 Pa
• Noise level: 42 dBA
• Motor type: EC motor with PWM control
• Bearings: Double ball bearings
• Protection class: IP44
• Mounting: horizontal or vertical
• Service life (L10): 67,000 hours
• Electrical specifications
• Voltage: 100–240 V AC
• Frequency: 50/60 Hz
• Maximum power consumption: 190 W
• Average power consumption: 72 W
• Current consumption: 2.80 A
• Mains plug: EU plug (Type C/F)
• Operating conditions
• Operating temperature: 0 to 60 °C
• Humidity: 35–85 % rF
• Fan dimensions: 310 × 254 × 239 mm
• Controller dimensions: 69 × 35 × 14 mm

Contents

• 1 × AC Infinity CLOUDLINE A8 EC tubular fan 200 mm
• 1 × 10-speed controller
• Fitting materials
• User manual
