AC Infinity Air Filter Set 200 mm – Complete system for grow tents

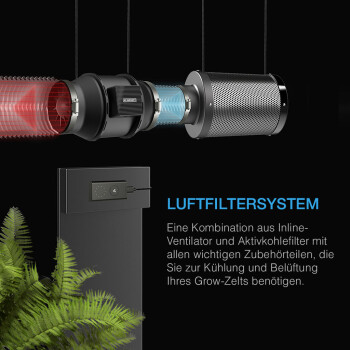

The AC Infinity Air Filter Set 200 mm is the perfect complete solution for ventilation, cooling and odour control in your grow room. It contains all the important components: the powerful CLOUDLINE inline fan with 10-speed controller, a highly efficient activated carbon filter made from Australian RC412 carbon, and a robust air hose system with four protective layers. This means you can get started right away – without having to search for individual parts.

Advantages of the AC Infinity air filter set

• Everything in one package: fan, activated carbon filter, hose & accessories
• Powerful CLOUDLINE A8 inline fan with 1,230 m³/h airflow & 42 dBA
• 10-speed control for precise regulation of airflow & noise level
• Highly efficient activated carbon filter (1200+ IAV, 38 mm carbon bed) reliably blocks odours
• Flexible 7.6 m air hose with four protective layers for maximum stability and tightness
• Complete set of accessories: pre-filter cloth, rope hanger, hanging strap and pipe clamps included
• Durable and safe: inline fan with 67,000 hours service life and IP-44 protection class

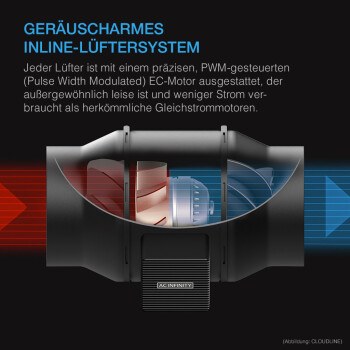

Inline fan – CLOUDLINE series

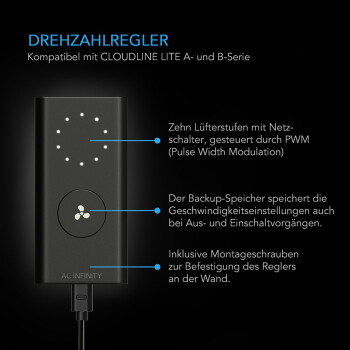

The CLOUDLINE A8 inline fan ensures quiet and efficient ventilation thanks to PWM technology. With 10 fan speeds, the airflow can be precisely adjusted. The motor housing is removable for easy cleaning and maintenance.

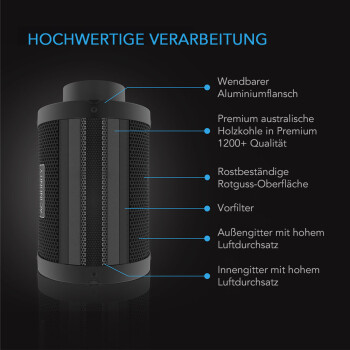

Activated carbon filter – maximum odour control

The 38 mm thick carbon bed made of Australian RC412 activated carbon absorbs odours up to 33% longer than standard filters. The service life is further extended with a pre-filter cloth and reversible flanges.

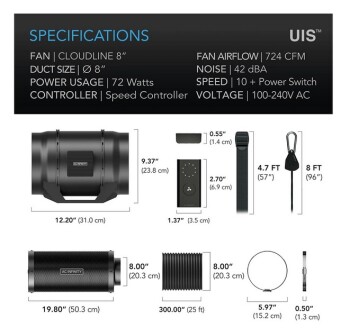

Technical data

General data

• Connection size: 200 mm
• Dimensions (unit): 31.0 × 25.4 × 23.8 cm
• Controller cable length: 183 cm
• Power cable length: 183 cm

Inline fan (CLOUDLINE A8)

• Total airflow: 1,230 m³/h
• Noise level: 42 dBA
• Static air pressure: 746 Pa
• Electrical voltage: 100–240 V (50/60 Hz)
• Max. power: 190 W
• Average power: 72 W
• Current: 0.83 A
• Plug: Schuko plug
• Humidity range: 35–85 % RH
• Operating temperature: 0–60 °C
• Protection class: IP-44
• Service life (L10): 67,000 hours

Activated carbon filter

• Maximum air flow: 1,308 m³/h
• Carbon type: Australian Virgin RC412
• Carbon quality: 1200+ IAV
• Carbon thickness: 38 mm
• Material: Aluminium flanges + galvanised steel mesh
• Special features: Pre-filter cloth & reversible flanges for longer service life

Note:

Activated carbon filters air with a humidity of less than 55% very well, but from 60% onwards the filter performance decreases and from 70% onwards good filter performance cannot be guaranteed.
