Extraction Kit PrimaKlima PKVS-125EC-THC with Temp & Hygro Control, 680 m³/h, ø125 mm

This powerful PrimaKlima PKVS-125EC-THC Set, with its perfectly matched components, is ideal for grow areas measuring 120x120cm.

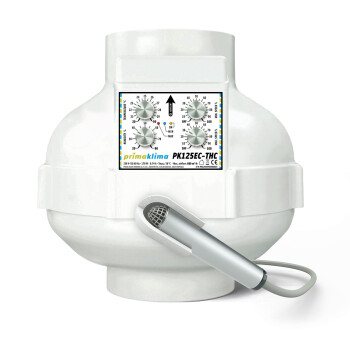

With the PK125EC-THC duct fan, PrimaKlima has launched a standout product that impresses with its exceptionally high build quality, energy efficiency and very quiet operation. The duct fan features humidity, temperature and integrated speed control, which is not only practical but also eliminates the need to purchase an optional speed controller.

The built-in EC motor from ebmpapst (Made in Germany) excels thanks to its low power consumption, high pressure build-up, performance and particularly quiet operation. The integrated speed controller allows for continuous adjustment of the airflow, all without any annoying humming noises.

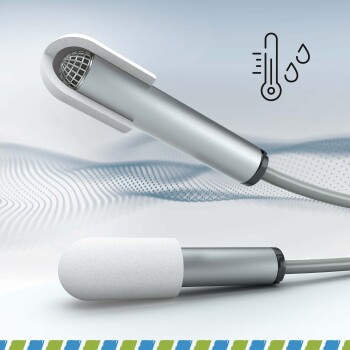

The temperature is continuously adjustable from 20–30°C, and the motor speed (min. + max.) from 0–100%. The temperature sensor is approx. 2 m long

Technical specifications PK125EC-THC 680 m³/h:

• Flange: 125 mm
• Airflow: 680 m³/h
• Power: 0–170 W
• Voltage: 230 V, 50/60 Hz
• Current consumption: 0.5 A
• Tmax: 50 °C
• Dimensions: 244 × 244 mm
• Weight: 2.5 kg

The Prima Klima Eco Flat 440m³/h ø125mm activated carbon filter ensures effective odour removal at an unbeatable price-performance ratio. Powerful air filtration with a 3 cm thick layer of CTC80-3mm activated carbon. This activated carbon filter from the Eco series reliably filters out all kinds of unwanted odours from the exhaust air and is one of the most important elements in indoor cultivation.

Filter technical specifications:

• Weight: 3.0 kg
• Height: 250 mm without flange
• Diameter: 230 mm
• Connection diameter: Ø125 mm
• Maximum airflow: 440 m³/h
• Optimal airflow: 360 m³/h
• Activated carbon: CTC80-3mm 1.6 kg

The set consists of the following items:

• 1 x PrimaKlima activated carbon filter Eco Flat 440 m³/h ø125 mm
• 1 x PrimaKlima PK125EC-THC duct fan 680 m³/h climate controller
• 1 x Combi-Flex duct ø127 mm, length 3 metres in one piece
• 1 x Mounting sleeve ø125 mm
• 1 x Hose clamp ø60 to 165 mm

Note:

The set is supplied unassembled. Connect the duct fan and the activated carbon filter using the mounting sleeve; please use the hose clamp for the ventilation hose.

PLEASE NOTE: The maximum speed of the fan should not exceed the maximum capacity of the filter.
