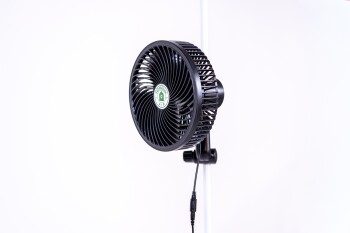

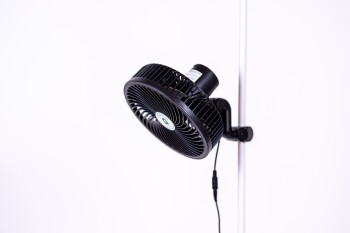

HOMEbox AIR BREVA EC Clip Fan 206 mm – powerful air circulation with intelligent oscillation

The HOMEbox AIR BREVA Clip Fan is a compact and powerful EC air circulation fan for grow tents and indoor gardens. With an airflow of up to 540 m³/h, ten speed settings and an intelligent oscillation function, the 206 mm clip-on fan ensures even air movement amongst your plants.

Despite its high airflow, the BREVA consumes just 9 watts. The modern EC motor thus combines efficient air circulation with low energy consumption and pleasantly quiet operation at just 28 dB.

Thanks to its sturdy clip mount, the fan can be attached directly to tent poles with a diameter of 16 to 35 mm – ideal for flexible use in a variety of grow boxes.

Powerful EC motor with up to 540 m³/h

At the heart of the HOMEbox AIR BREVA is its energy-efficient EC motor running at 2,000 rpm. This achieves a maximum airflow of 540 m³/h whilst consuming just 9 watts.

The continuous air movement helps maintain a balanced climate in the grow tent, prevents stagnant air pockets and ensures that the air is distributed more evenly amongst the plants.

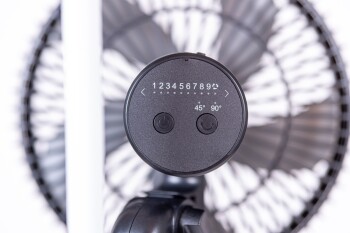

With its ten speed settings ranging from 0 to 9, you can precisely adjust the air circulation to suit the size of your grow box, the number of plants and their current stage of development.

Intelligent oscillation with three swivel modes

A particular highlight of the BREVA is its flexibly adjustable oscillation function. Instead of constantly moving the air in just one direction, the fan can automatically cover different areas of the grow tent.

Three modes are available:

• 45° oscillation
• 90° oscillation
• combined 45°–90° alternating mode

This allows you to tailor the airflow specifically to your growing area. Particularly in densely planted grow tents, oscillation enables a much more even distribution of air than a rigidly fixed clip-on fan.

Power-off memory – settings remain saved

The integrated Power-off memory function is particularly useful for automated operation.

The HOMEbox AIR BREVA remembers both the selected speed setting and the oscillation setting. After a power cut, the previously selected settings are automatically restored.

This is particularly useful when used with timers or other externally controlled circuits.

Quiet operation at just 28 dB

A powerful air circulator does not necessarily have to be noisy. The BREVA’s EC motor is designed for quiet operation and achieves a specified noise level of just 28 dB.

This makes the clip-on fan ideal for grow tents, where high airflow and minimal noise are both important.

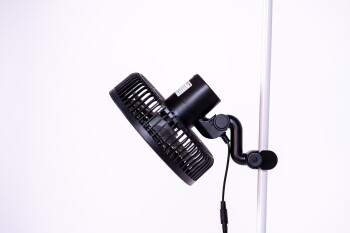

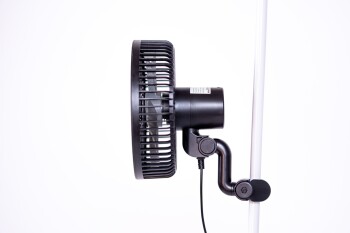

Sturdy clip-on mount for grow tents

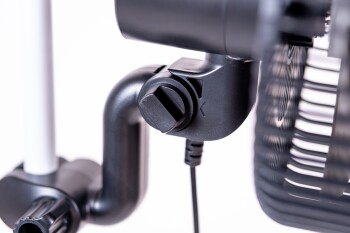

The robust clip mount allows direct attachment to pipes or tent poles with a diameter of 16 to 35 mm.

Integrated anti-slip pads improve grip whilst protecting the surface of the tent poles. This allows the fan to be positioned flexibly exactly where the airflow is actually needed.

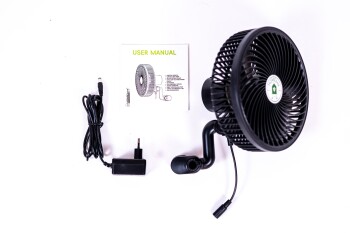

The 2-metre-long mains cable offers additional flexibility when positioning the fan inside the grow box.

Robust construction with IP54 protection

The HOMEbox AIR BREVA is also designed for long-term use in demanding environments.

The housing is made of flame-retardant material compliant with UL94V-0 and has an IP54 protection rating. This protects the fan against dust in harmful quantities and against splashing water.

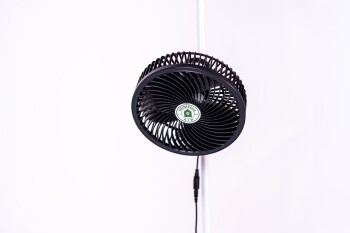

A reinforced protective grille provides additional protection for the fan blades and mechanical components.

Advantages of the HOMEbox AIR BREVA clip-on fan

• Powerful EC clip-on fan for grow tents
• 206 mm / 8-inch fan diameter
• Airflow of up to 540 m³/h
• Very low power consumption of just 9 W
• Quiet operation at just 28 dB
• 10 speed settings from 0–9
• Three different oscillation modes
• 45° and 90° swivel range
• Automatic 45°–90° switching mode
• Power-off memory saves speed and oscillation settings
• Sturdy clip mount for tubes from 16–35 mm
• Anti-slip pads for a secure grip
• IP54 protection
• Fire-retardant housing to UL94V-0
• 2 m power cable

Technical specifications

• Fan diameter: 206 mm / 8 inches
• Dimensions: 18.3 x 13.3 x 20.6 cm
• Airflow: up to 540 m³/h
• Speed settings: 10 (0–9)
• Rotational speed: 2,000 rpm
• Power consumption: 9 W
• Noise level: 28 dB
• Motor: EC motor
• Oscillation: 45°, 90° and 45°–90° alternating mode
• Voltage: 110–240 V
• Protection class: IP54
• Fire safety class: UL94V-0
• Suitable for: pipe diameters 16–35 mm
• Temperature range: -25 °C bis 60 °C
• Cable length: 2 m
• Service life: approx. 8,000 hours
• Weight: 0,61 kg
