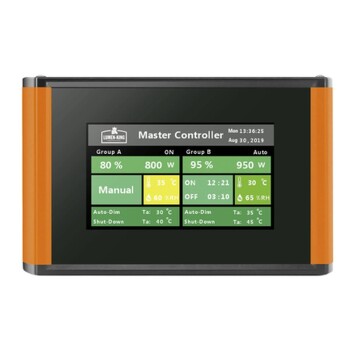

Lumen King Eco Controller – Smart 2-channel lighting controller for LED & HPS lighting

Precise lighting control for professional indoor grows

The Lumen King Eco Controller is a powerful 2-channel lighting controller, specially developed for the precise control of LED and HPS grow lights. With extensive automation functions, intuitive touchscreen operation and the ability to control two separate lighting groups independently of one another, the controller is ideal for grow tents, grow rooms and professional greenhouse set-ups.

Whether it’s different light cycles, sunrise and sunset simulation or overheating protection – the Lumen King Eco Controller ensures optimal lighting control and creates stable conditions for healthy plant growth.

Two independently controllable lighting zones

The Eco Controller features two separately programmable channels (A and B). This allows two different grow areas or rooms to be managed independently of one another.

Each lighting group can be individually configured in terms of:

• Switch-on and switch-off times
• Dimming power
• Sunrise
• Sunset
• Temperature limits

Ideal for growers who cultivate different plants or growth stages in parallel.

Compatible with LED and HPS grow lights

The Lumen King Eco Controller is compatible with numerous dimmable LED grow lights and electronic HPS ballasts.

Via the 0–11.5-volt output, connected lights can be automatically:

• switched on and off
• dimmed
• and controlled in accordance with the programmed light cycles.

One controller can control up to 30 lights per output.

Natural sunrise and sunset

For light transitions that are particularly gentle on plants, the controller features an integrated sunrise/sunset function.

The light output is gradually increased or decreased over a period of 10 to 60 minutes, thereby simulating the natural course of the day.

Advantages:

• smooth transition between light and dark
• reduced stress on the plants
• more natural lighting conditions
• optimised growing conditions

Intelligent overheating protection

Each channel has an individually adjustable temperature protection feature.

If the temperature in the grow room rises above the set limit, the controller automatically reduces the light output or switches the lighting off completely. This reliably protects plants from heat damage – for example, in the event of a failure of the air conditioning or ventilation system.

Intuitive operation via LCD touchscreen

All settings can be conveniently adjusted via the integrated LCD touchscreen.

The controller supports both:

• 24-hour timers
• customisable 48-hour cycles

This makes it easy to implement even specialised lighting set-ups.

The clear menu navigation enables quick setup and convenient adjustment of all parameters.

Simple installation

The Eco Controller is supplied fully ready for connection and can be installed quickly.

Thanks to the RJ45 connection, cable lengths of up to 100 metres can be achieved per channel.

Advantages of the Lumen King Eco Controller

• Professional 2-channel lighting controller
• Compatible with LED and HPS lighting
• Two independently programmable lighting groups
• Control of up to 30 lights per output
• 0–11.5 volts Dimming control
• Sunrise and sunset simulation (10–60 minutes)
• Individually adjustable overheating protection
• 24- or 48-hour light cycles
• Large LCD touchscreen
• Easy to use and quick to install
• RJ45 connection with cable lengths of up to 100 metres
• Ideal for grow tents, grow rooms and greenhouses

Technical Specifications

• Compatibility: LED and HPS lighting
• Controllable lighting groups: 2 (A/B)
• Output voltage: 0–11.5 V DC
• Max. number of lights: 30
• Maximum cable length per group: 100 m
• Sunrise/sunset: 10–60 minutes
• Overheating protection: Yes, individually adjustable per channel
• Timing programmes: 24- or 48-hour cycle
• Control: LCD touchscreen
• Input voltage: DC 5 V / 2 A
• Dimensions: L 170 mm x W 103 mm x H 54 mm
• Weight: 0.45 kg

Contents

• 1 × Lumen King Eco Controller
• 1 × Temperature sensor with sensor cable
• 1 × RJ45 network cable
• 1 × Power supply unit
• 2 × Screws including wall plugs for wall mounting
• 1 × User manual
